CUSTOM KITCHEN LARDER , WAREHAM (2022)
The client required a customm-built larder to replace the existing shelving unit which did not meet their requirements. The unit was to be enclosed in an Oak-surfaced shaker style facade, incorporating sliding draws with heavy duty soft close draw runners at 700mm extension.

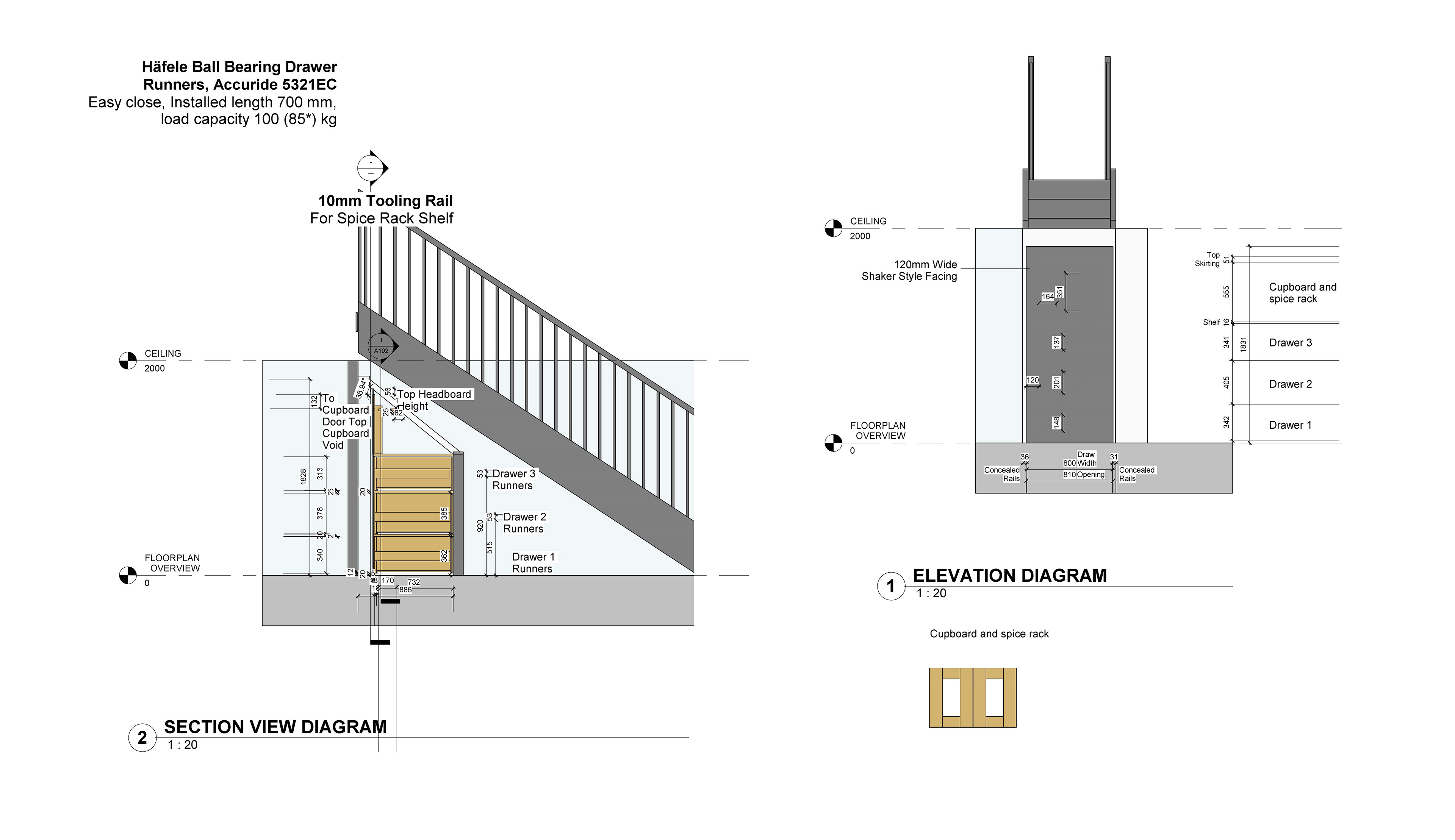

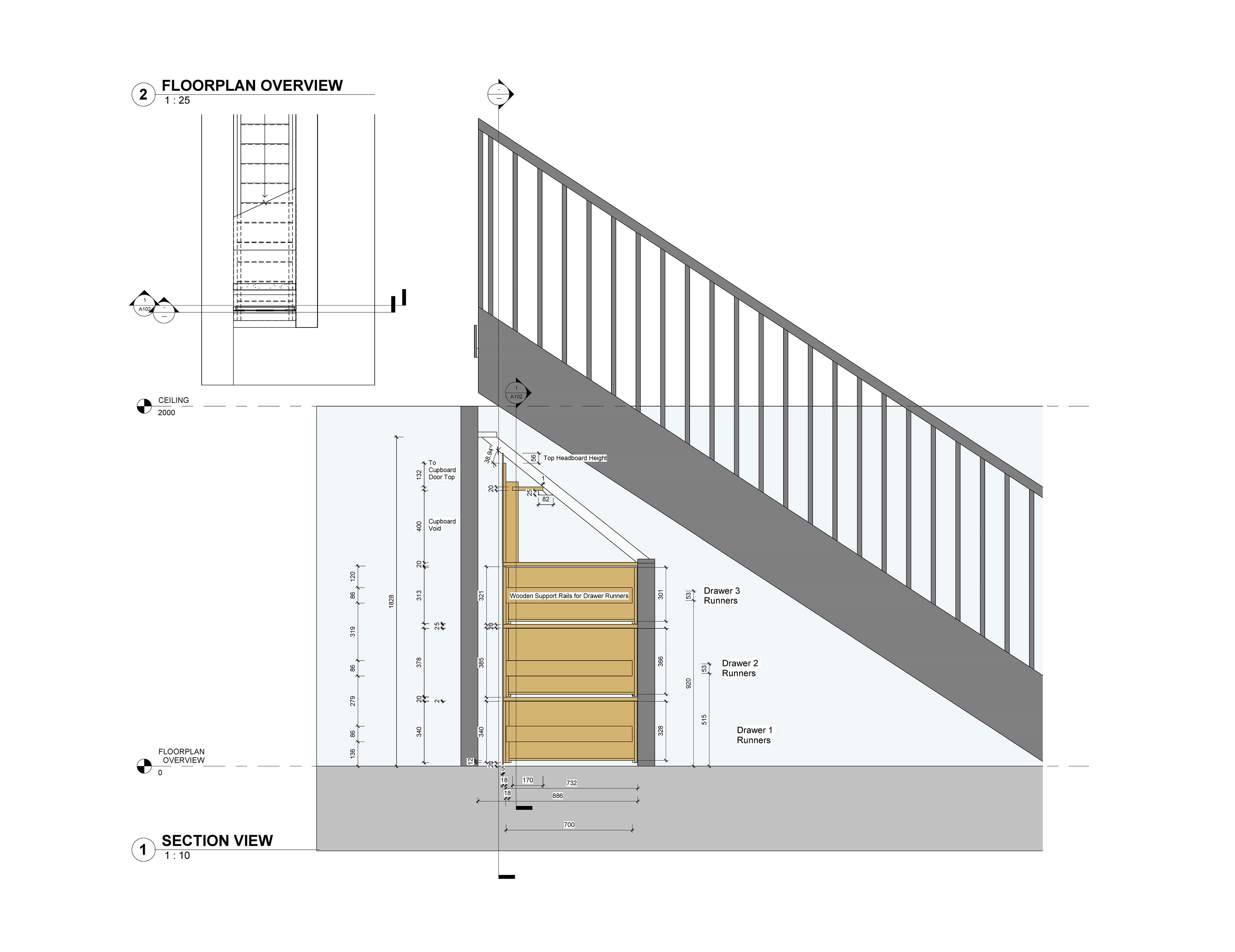

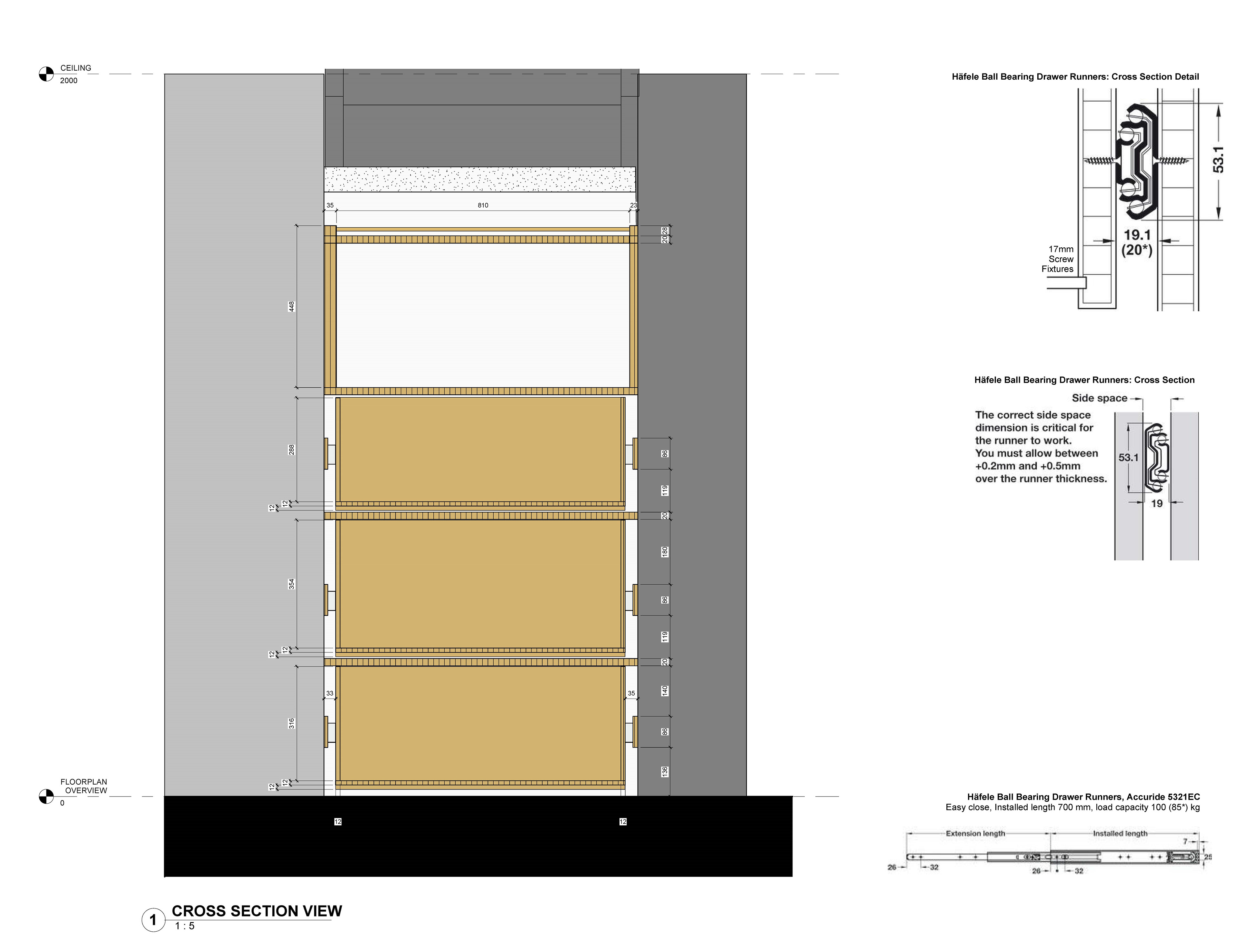

After an initial site visit and client consultation, techical drawings were producted for the construction team and renders were produced for the client, to ensure the unit would fit the tight space and meet the client's expectations.

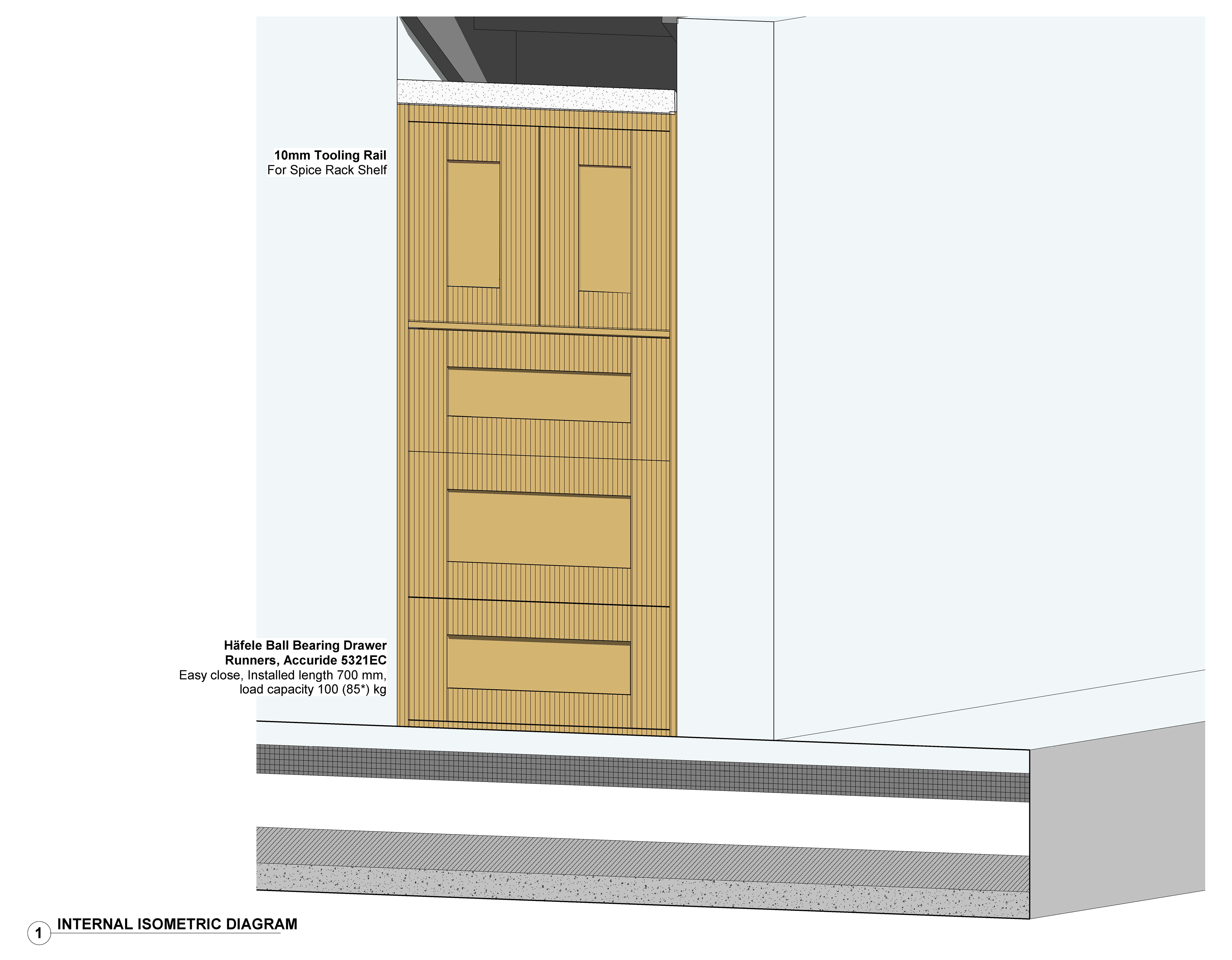

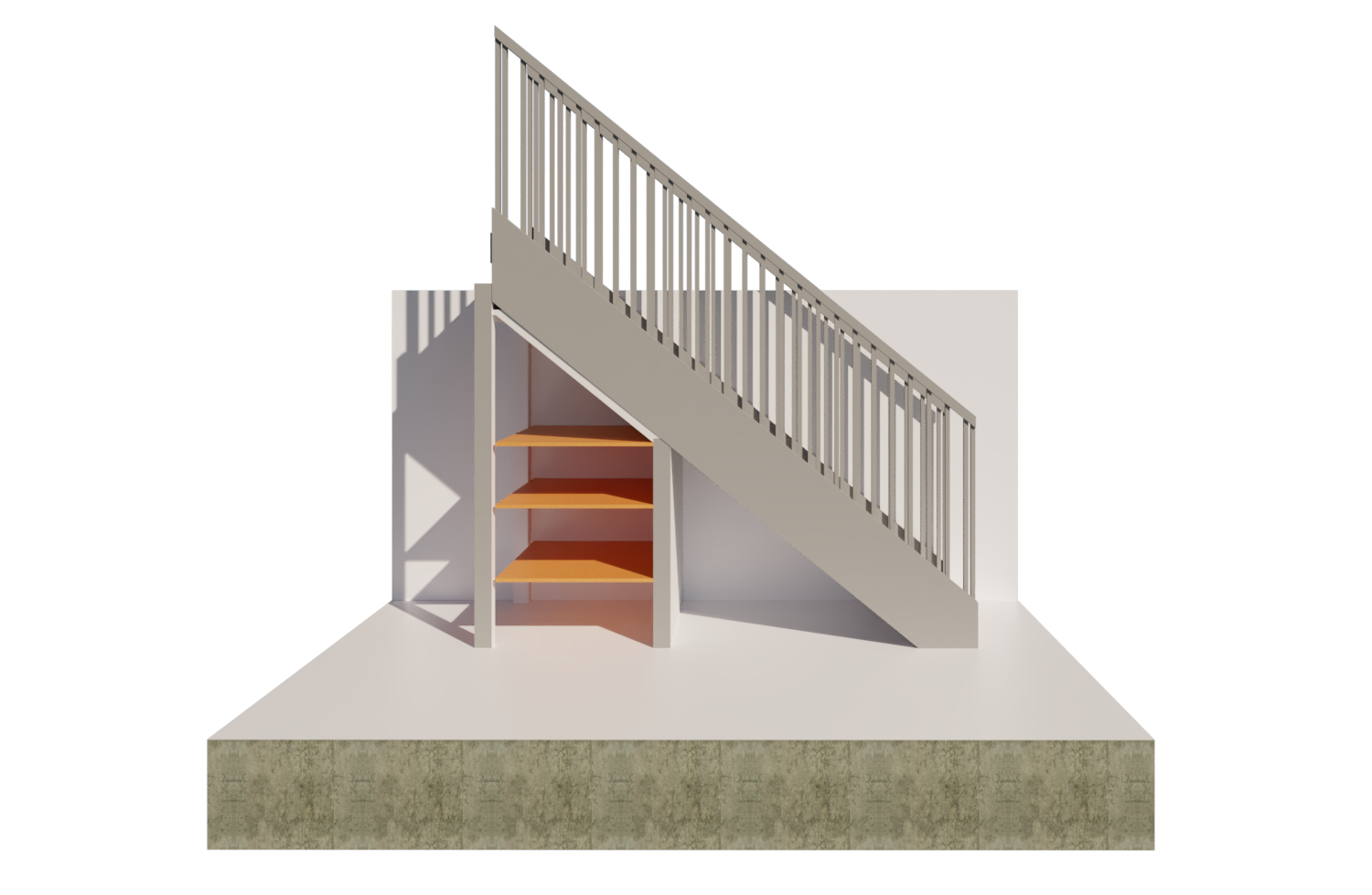

The technical drawings created for this project were converted to renders to enable the client to visualise the final product, and allow the client to make necessary changes before the production process began, including using VR to show the scale of the proposed structure.

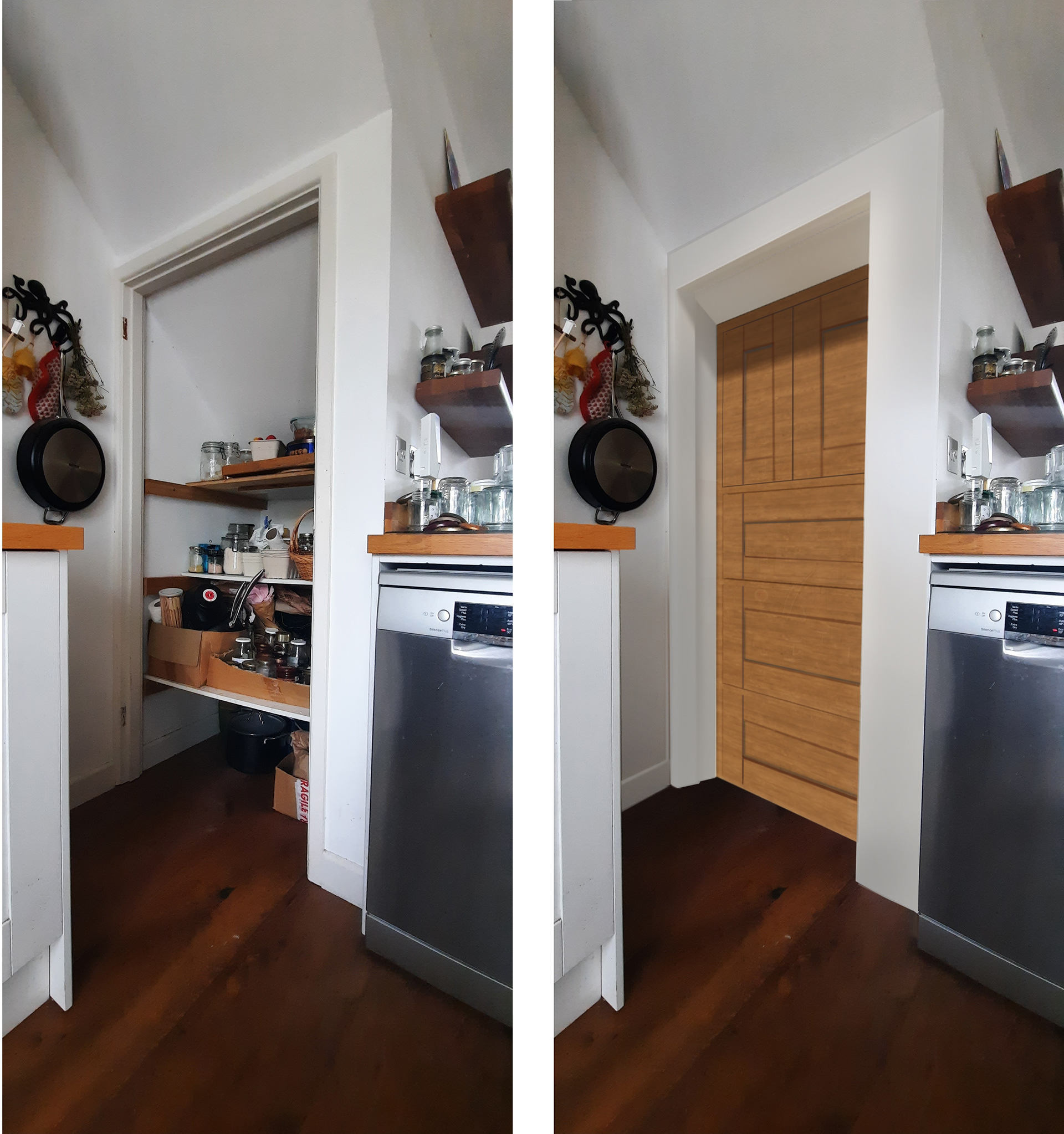

Existing Larder and Photoshop Visualisation

AR Size Confirmation (OBJ. to Vectary)
Larder Post-Installation

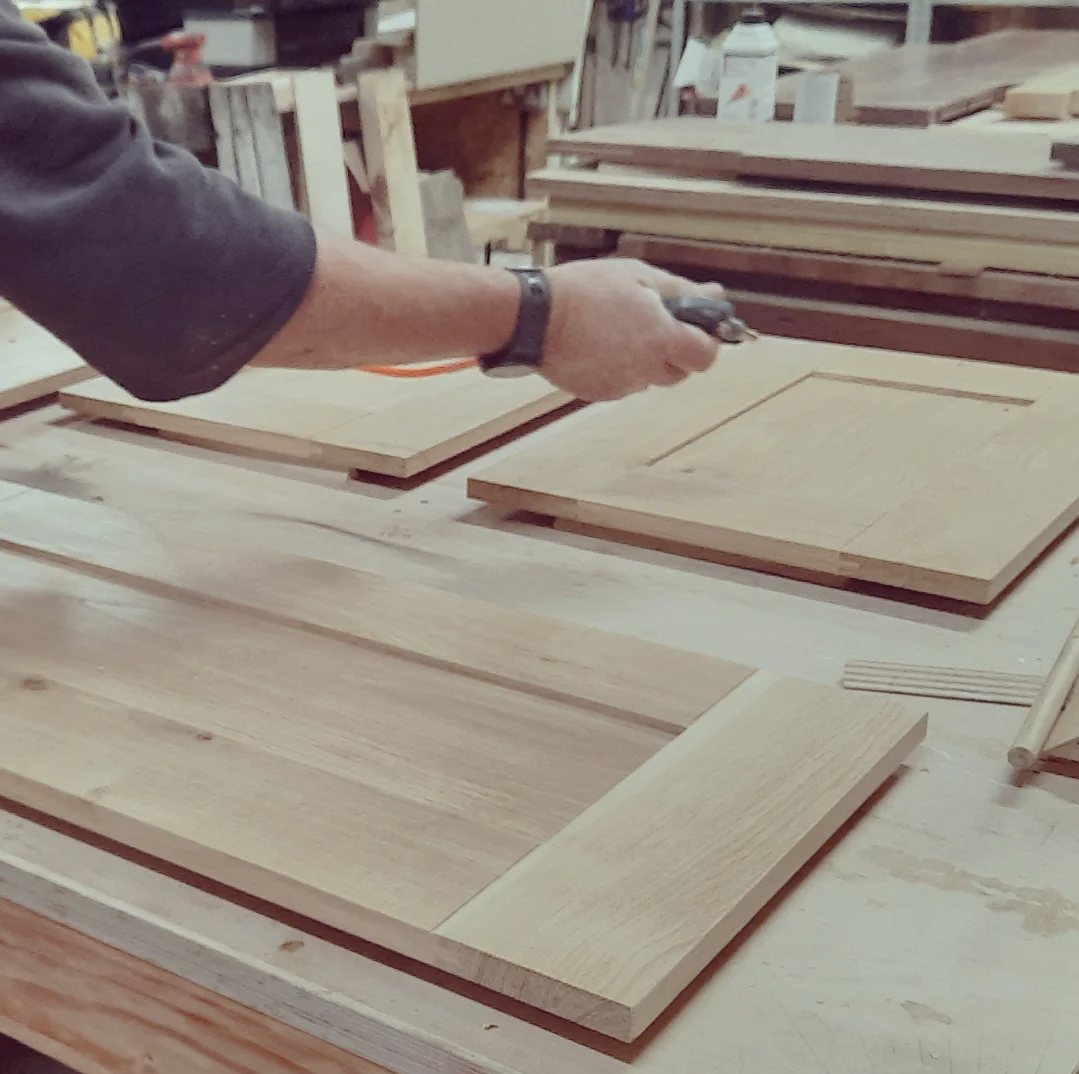

The custom-made larder doors in production:
