CONVERTED 1946 SHOWMAN'S WAGON - CUSTOM REBUILD (2022)
This wagon was being converted to enable the client to have a guest house external to their property for residential usage. Like most who design wagon interiors, I found the greatest challenge with these builds is the inability to adhere to standard building regulations that govern minimum spatial dimensions for usage.
The client had a vision for the wagon to be decorated in a style that fit somewhere between Art Deco and Art Nouveau, with muted sage external paintwork (RAL 6019) carried through into the internal furnishings.
Below are some of the photoshop visuals and technical drawings produced for this project. This work was still ongoing after I left working at RPH Design Studio to work at the Arts University Bournemouth.

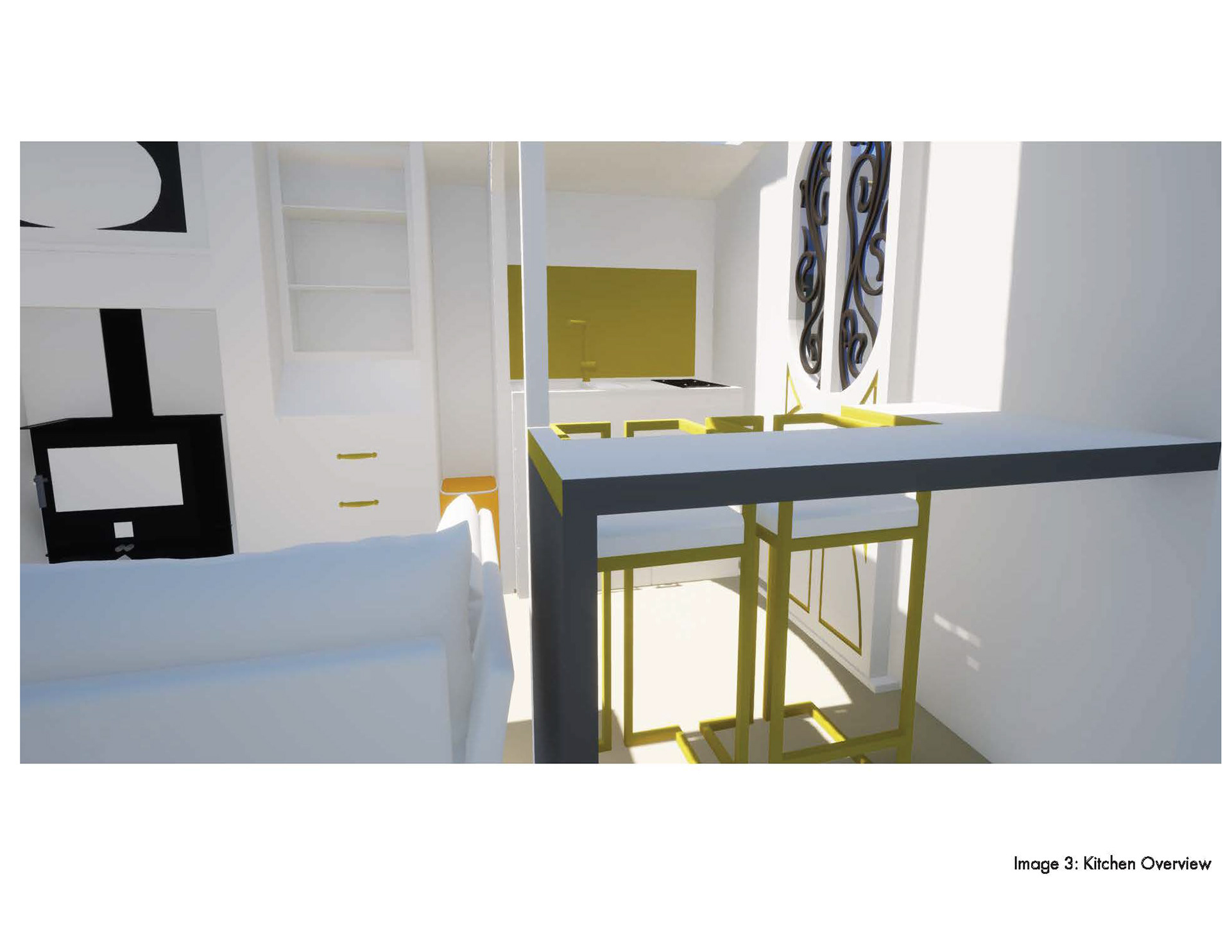

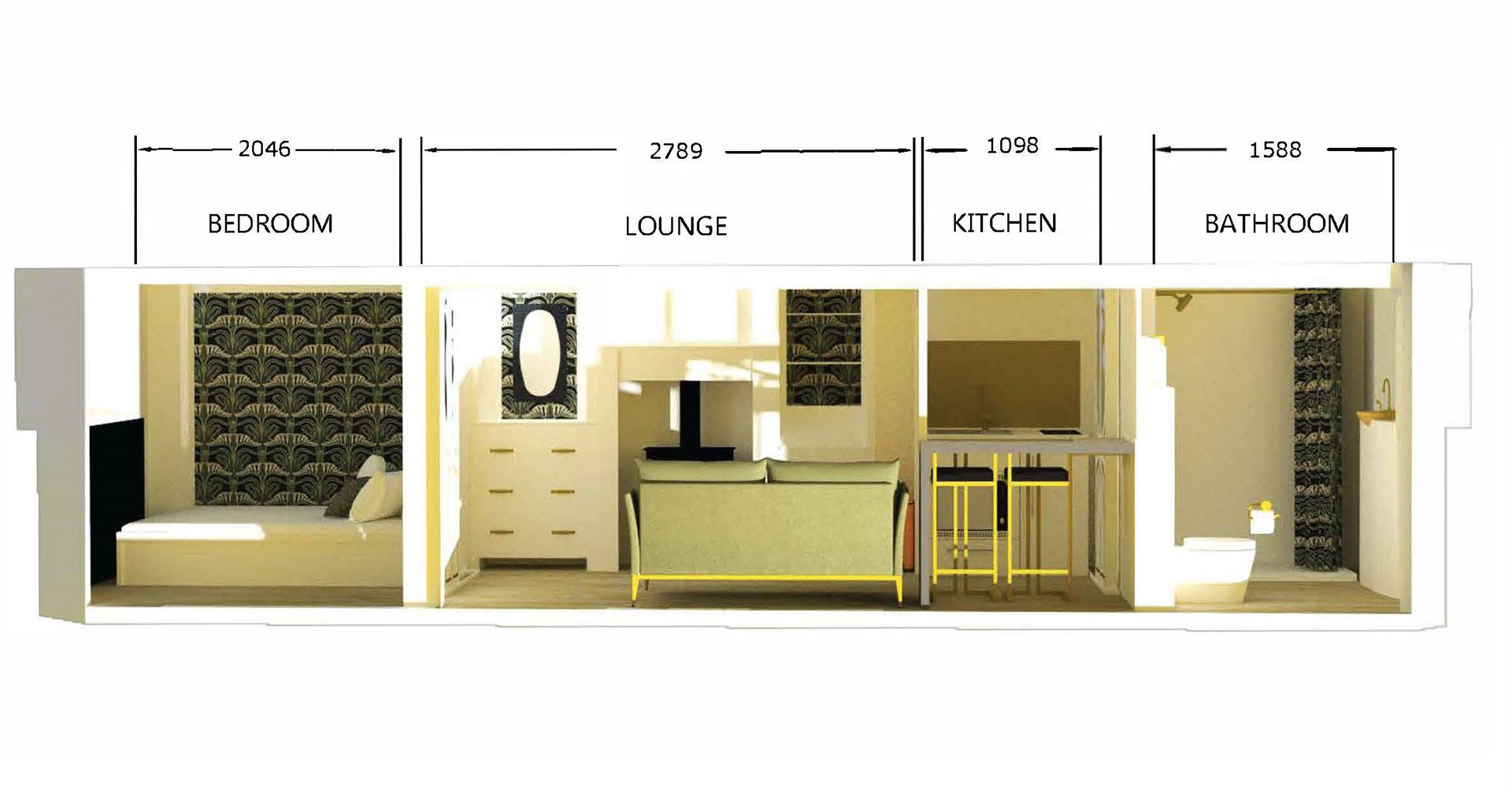

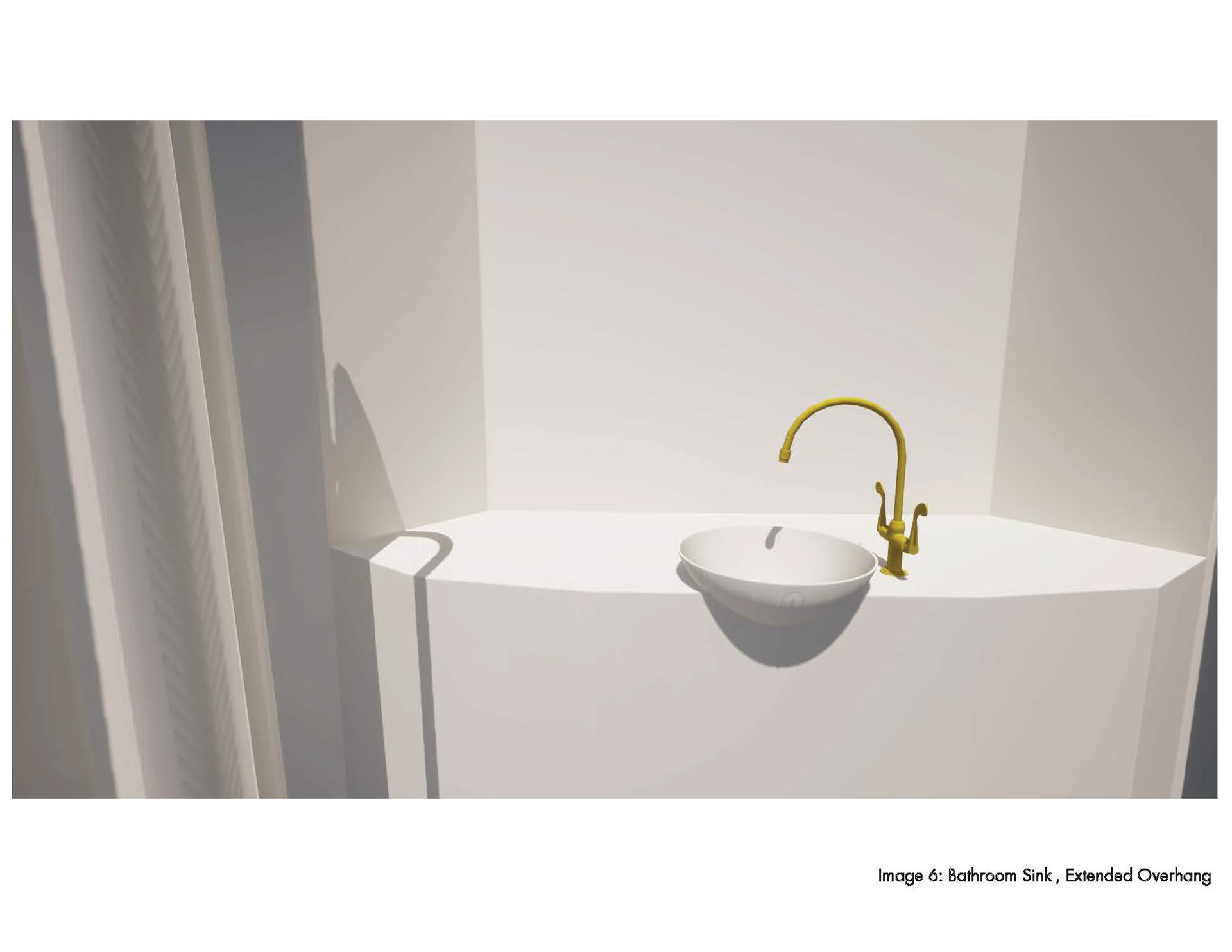

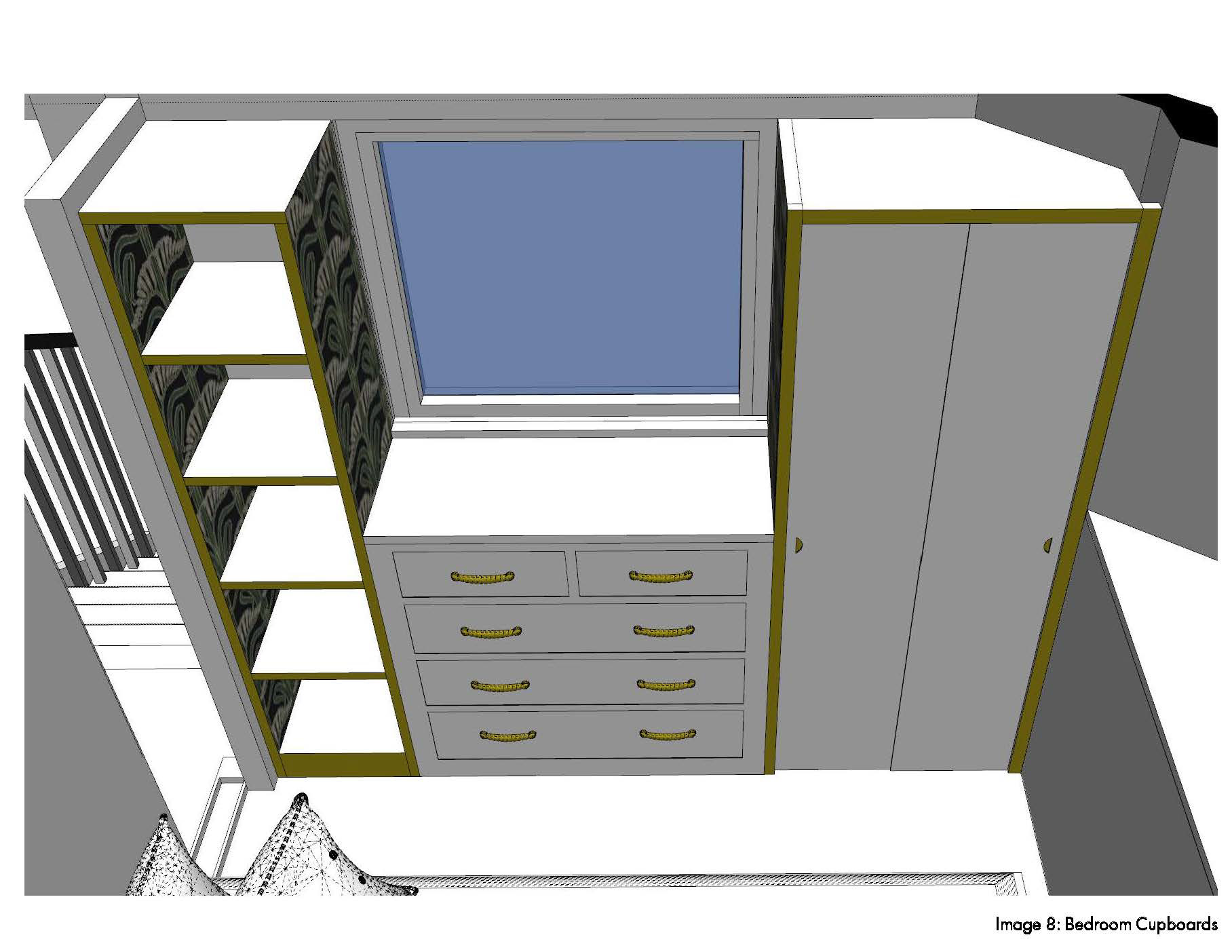

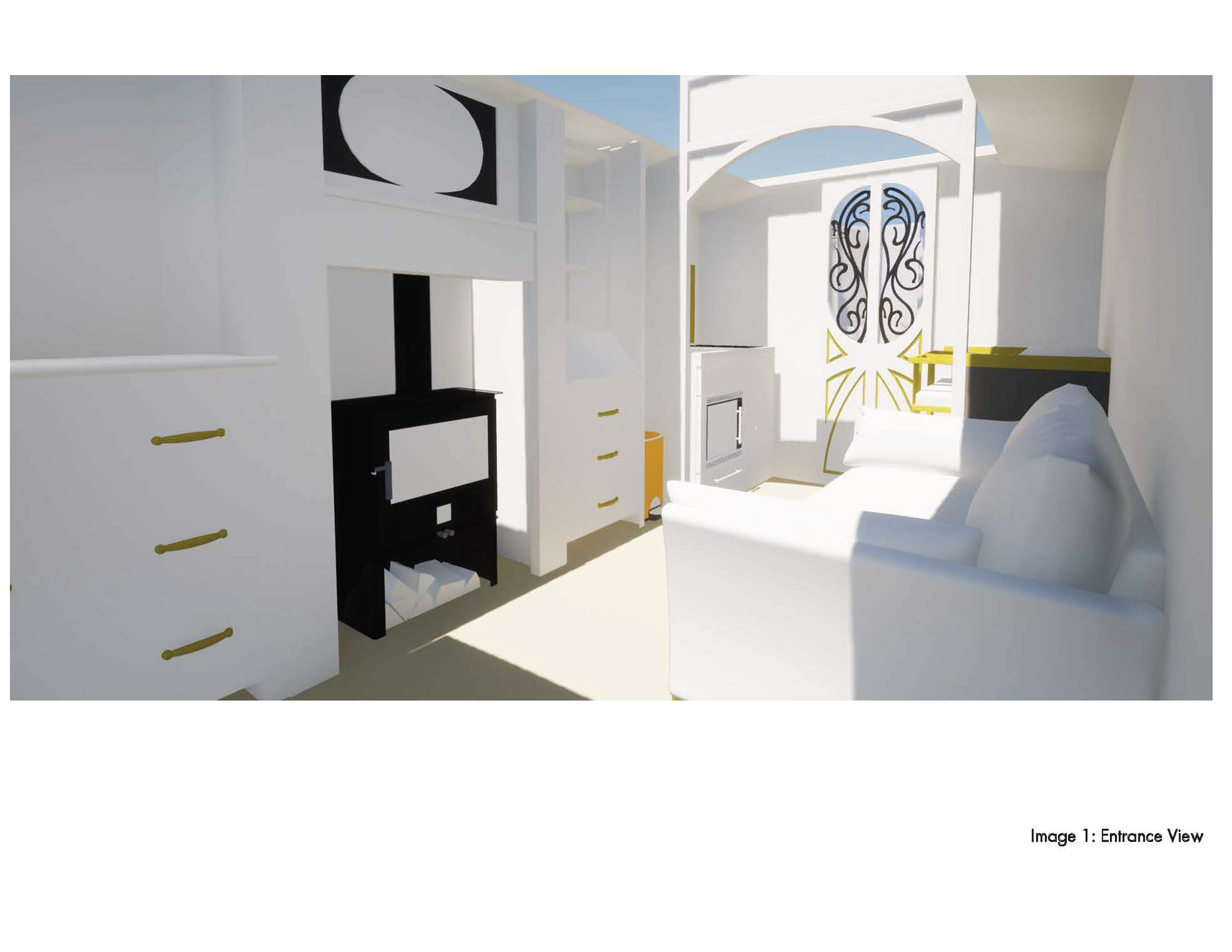

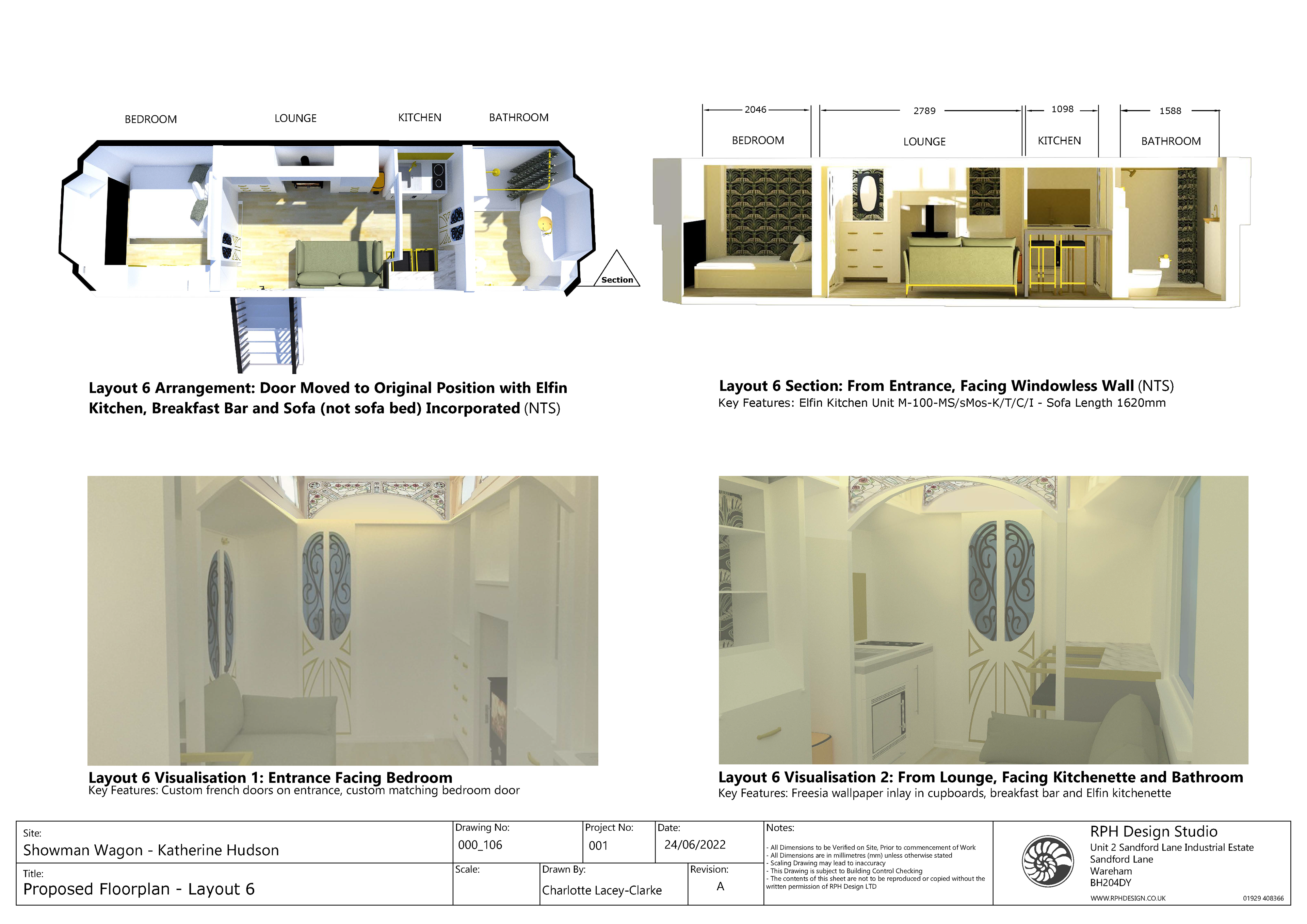

Technical drawingsproduced using SketchUp, Layout, and Twinmotion in 2022:

Below is a presentation video produced for the client prior to their site visit:

If the design process was continued the projected outcome would have looked like this internally:

Final Design Site Visualisation Walkthrough
