DORSET WELLBEING - TIMBER LEARNING CABIN, 2022
Proposals commissioned by Os Filmalter of Dorset Wellbeing in 2022, to create a sustainable learning space alongside their outdoor educational centres, which educate children about the environment, their connection to it, and it's effects on mental wellbeing.

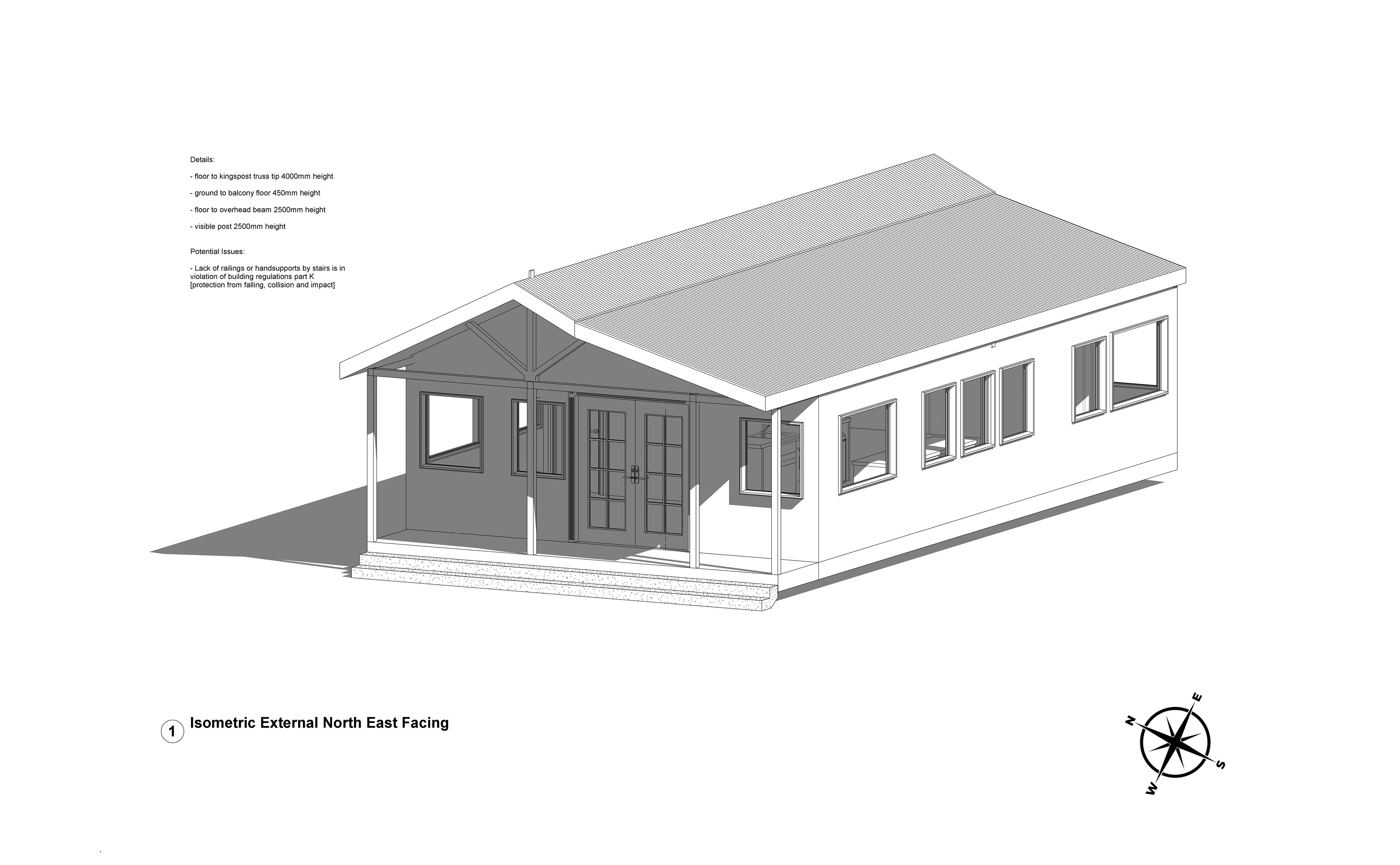

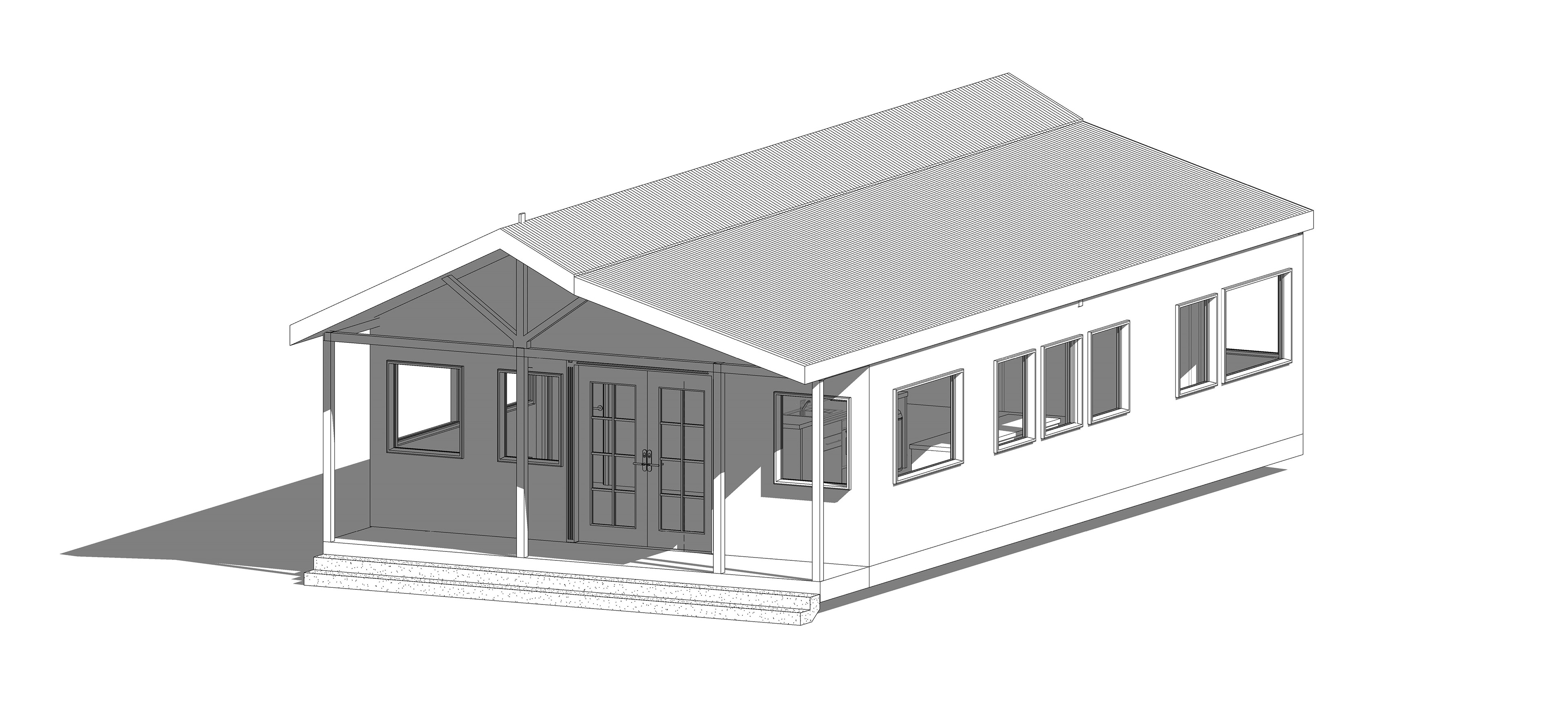

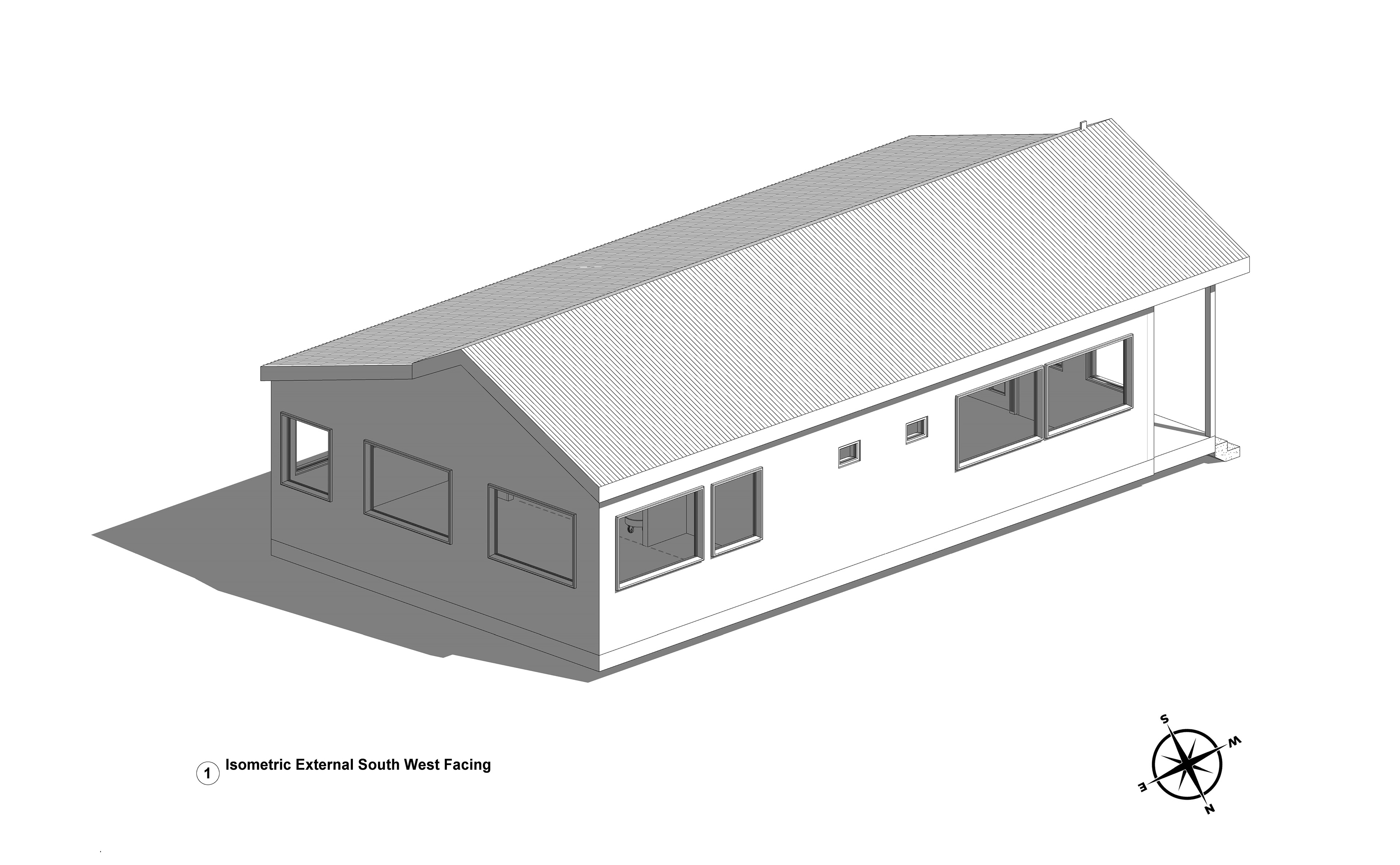

Timber-framed cabin with staggered gable roof, loading weight distributed on kingspost truss and beam system for 70 square meter layout.

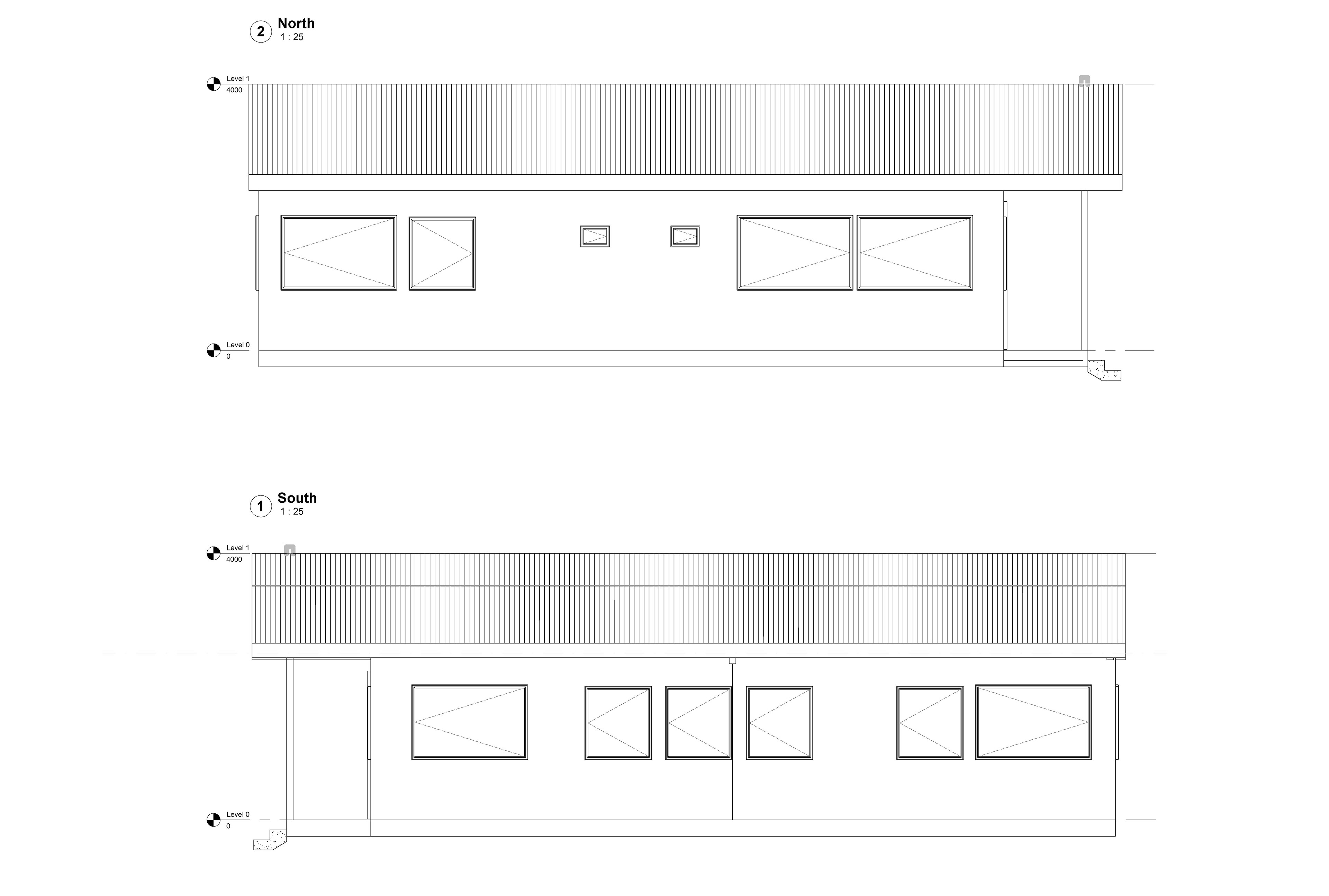

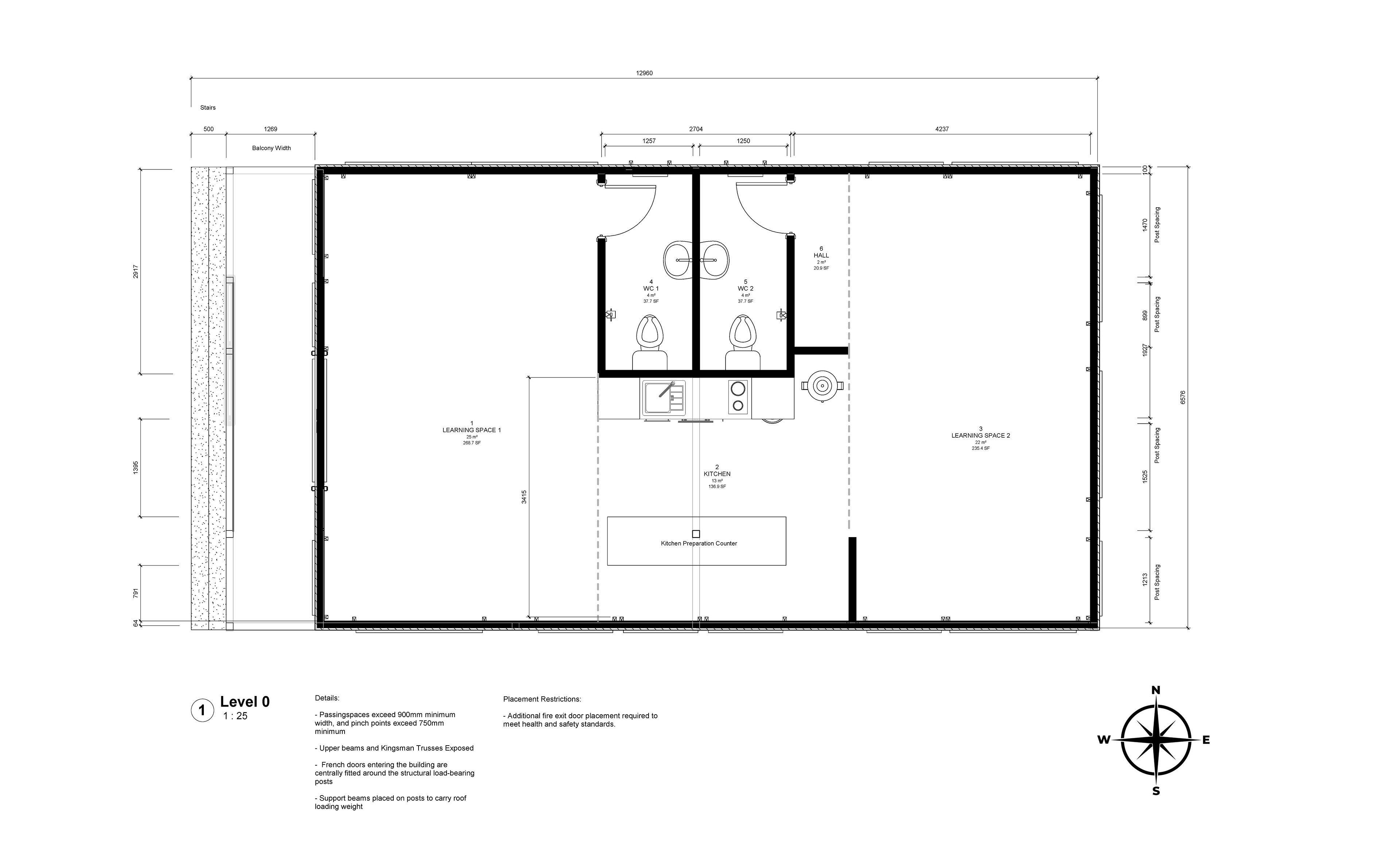

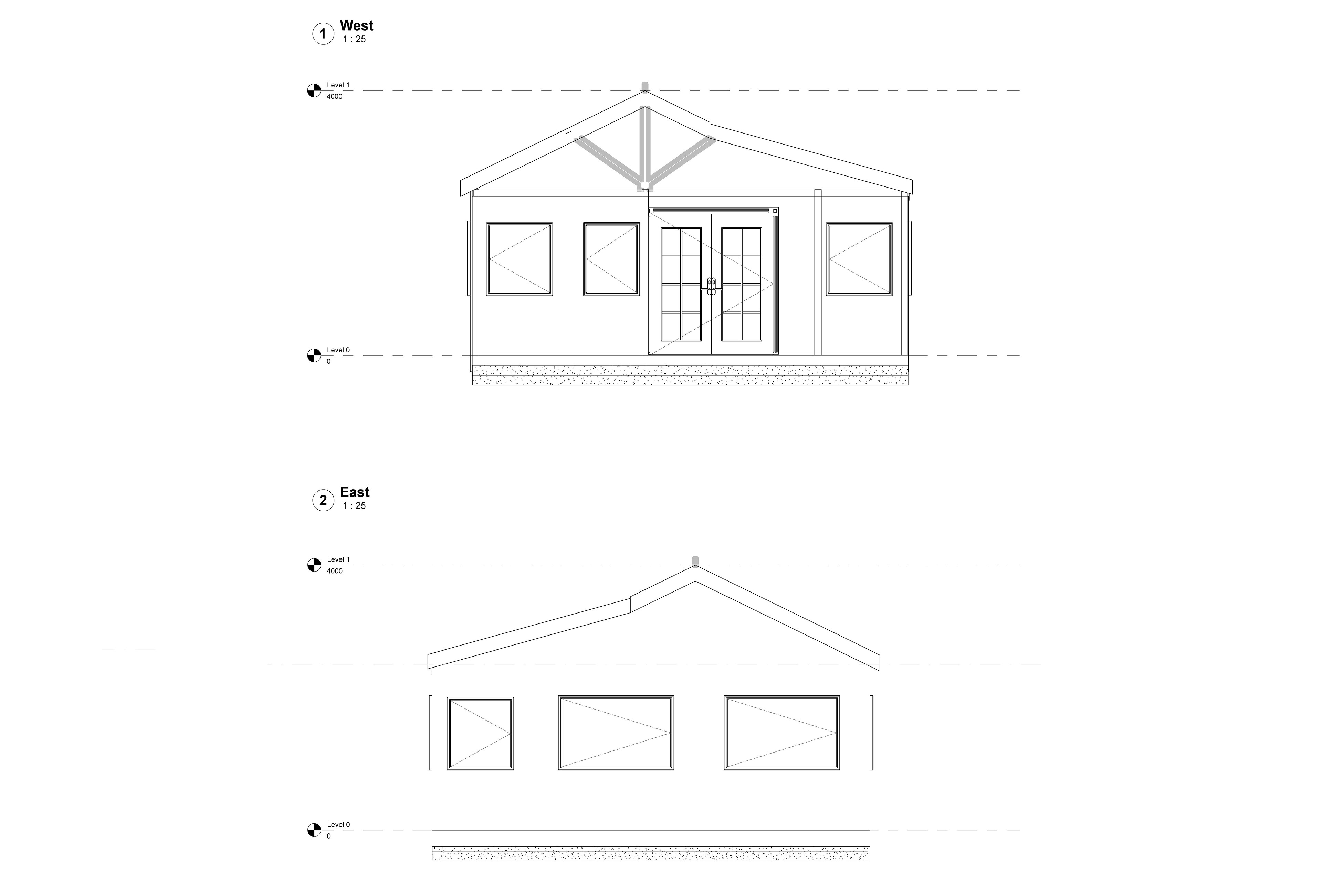

Additional fixtures to ensure building regulation compliance would be a ramped sencondary entrance to the rear of the site, and railings lining the stairs for the main access double door entrance. All access points within this design otherwise meet building regulations. Drawings scaled 1:25 at A1.
Drawn in Revit, renders created in Twinmotion. Additional Furniture renders not required for proposal.

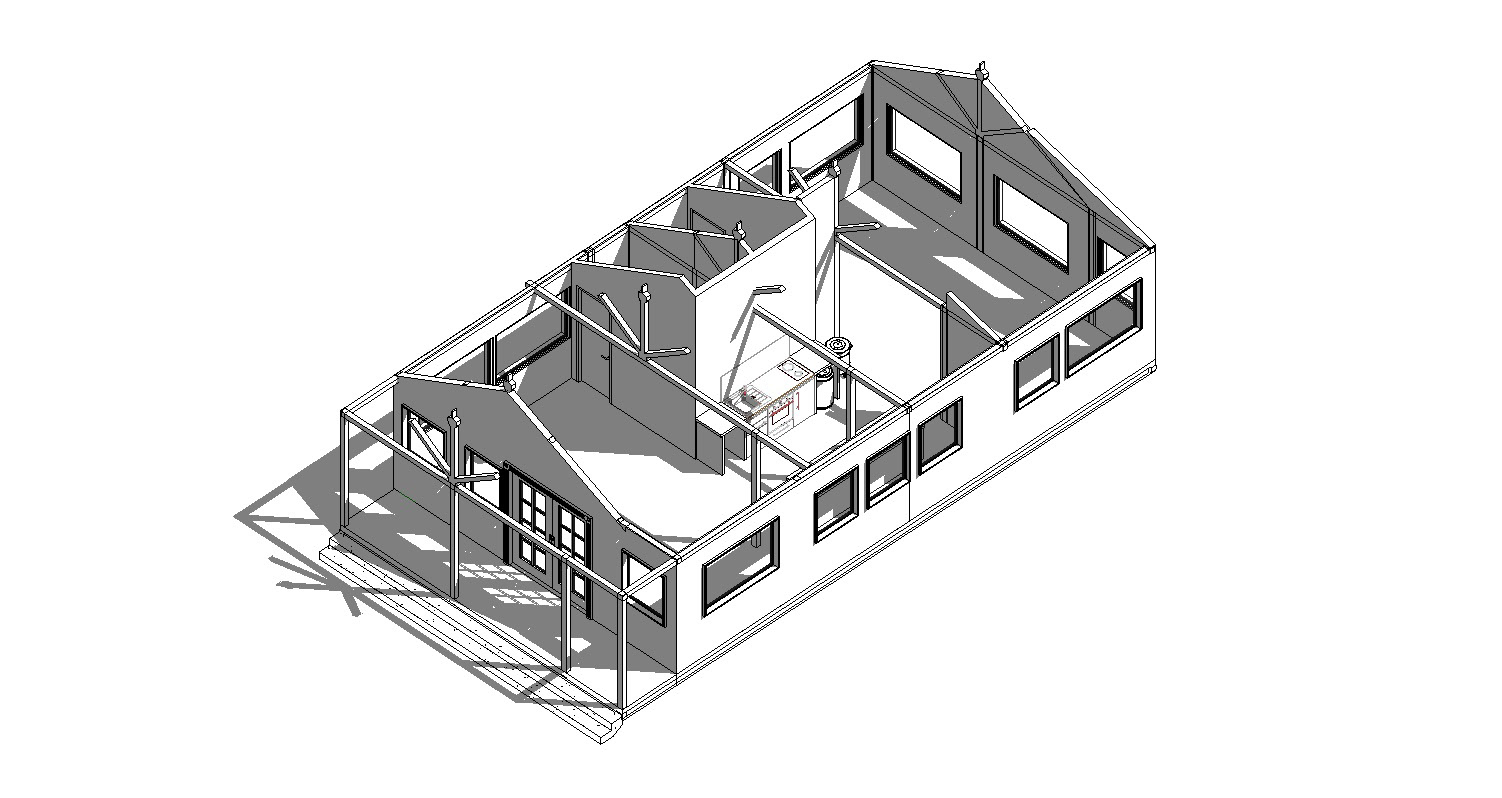

Isometric Floor Plan - Roof Removed
Although when leaving RPH Design this project was still under it's proposal stages with Dorset Wellbeing, a private client requested a similar structure - and after seeing the design decided to commission the structure.
Below are some images of the structure in development being built:
